EXISTING CONDITIONS · OCEAN VIEW, NJKnow the Site Before You Design It, Ocean View
Before an engineer designs anything on an existing site, they need to know what's really there.
1.7 acres · As-built linework in CAD · 3D model of the building
The site
This 1.7 acre commercial lot in Ocean View has a one-story building, a large parking lot and the site features around them. The engineer needed existing conditions they could trust to make the best use of the land.
What we did
Our FAA Part 107 certified pilot mapped the site from the air, and we built an orthomosaic and point cloud with half-inch pixels.
From that data we drafted the building, the pavement and the site features in CAD, and built a 3D model of the existing building so the engineer could see its condition before making design decisions.
At a glance
Location: Ocean View, Dennis Township, Cape May County, NJ
Site: commercial lot with a one-story building
Data: point cloud and orthomosaic with half-inch pixels
Drafting: building, pavement and site features in CAD
Model: 3D model of the existing building
Mapping and drafting in support of a licensed surveyor.
Planning work on an existing site? Send us the site →

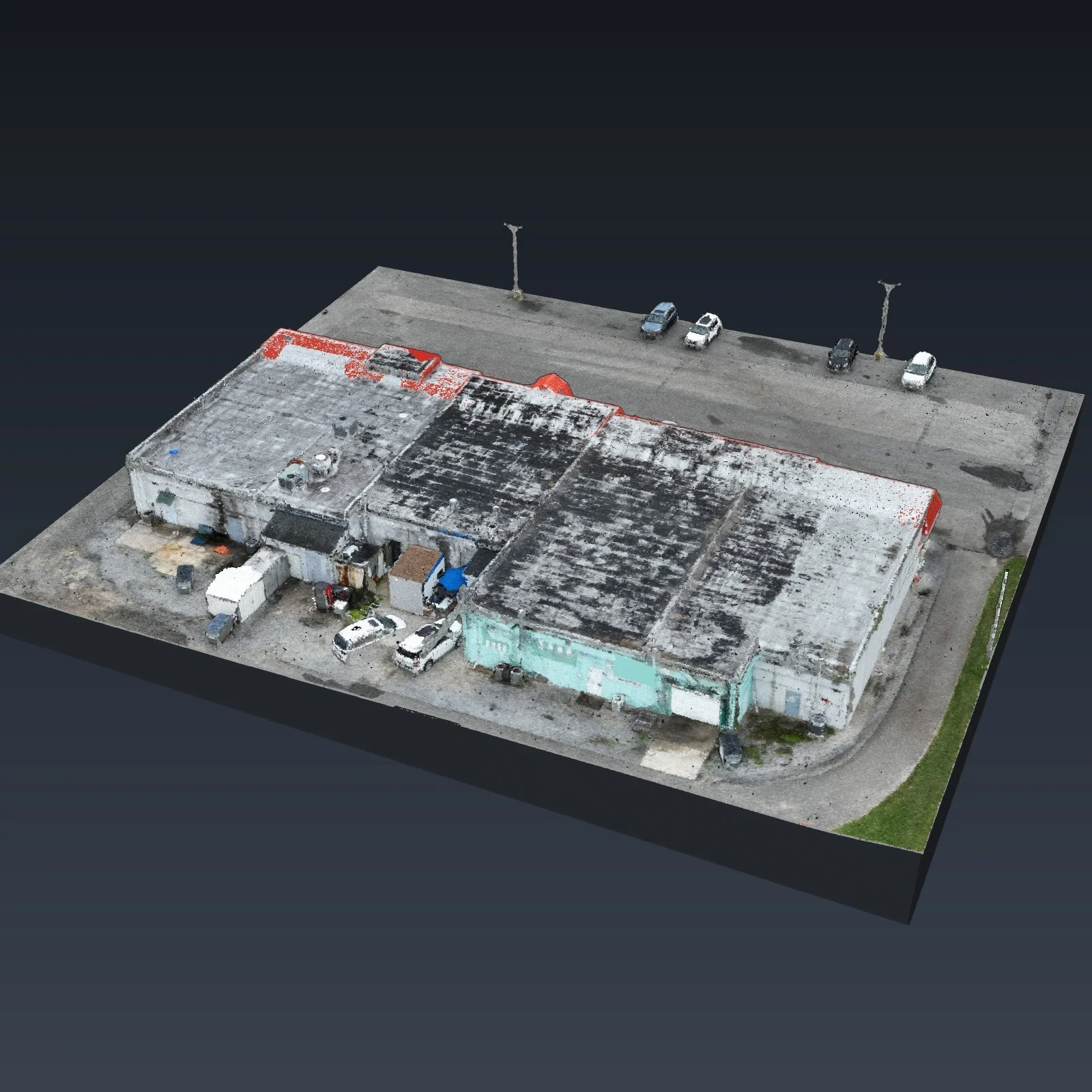

The existing building in 3D, roof and walls as they are today

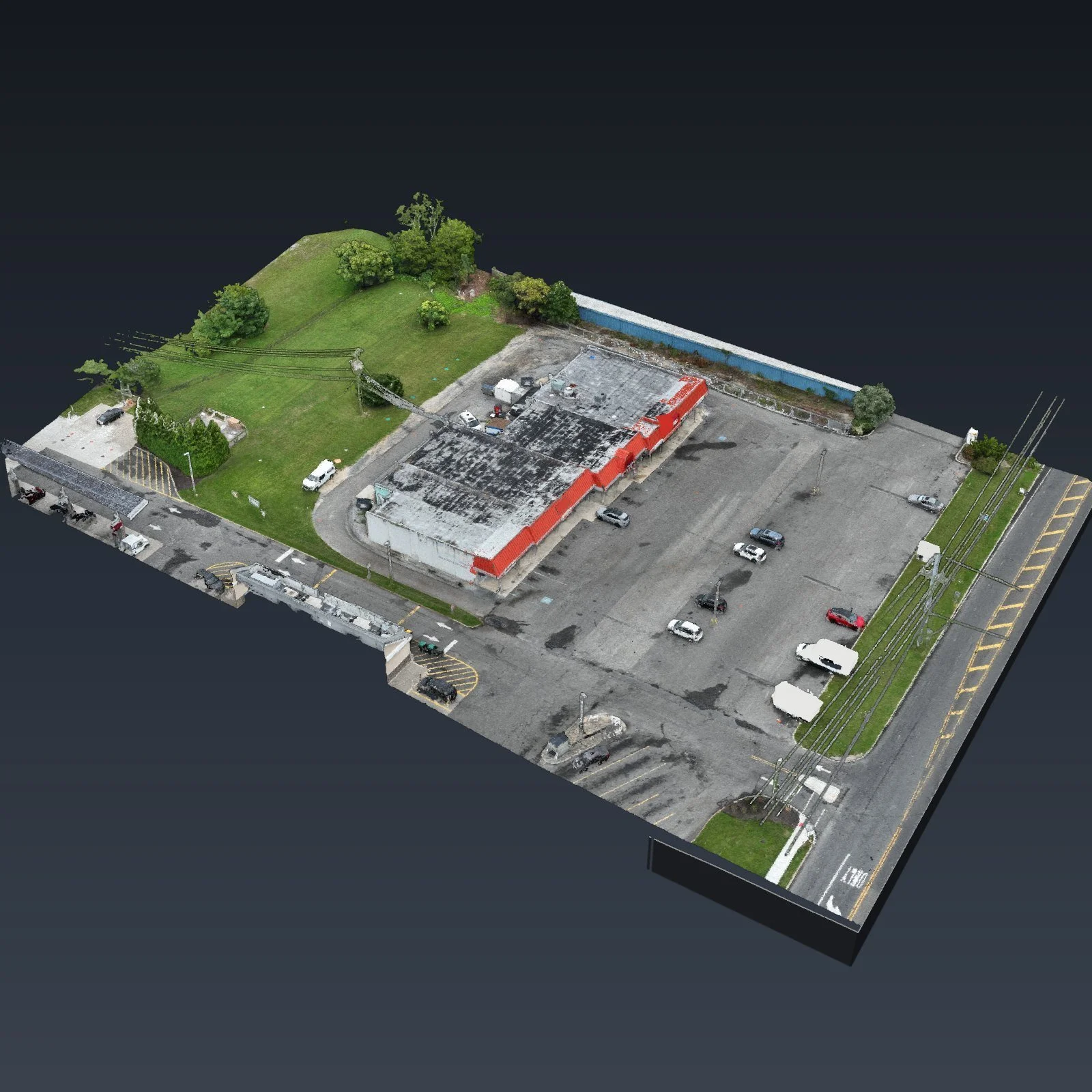

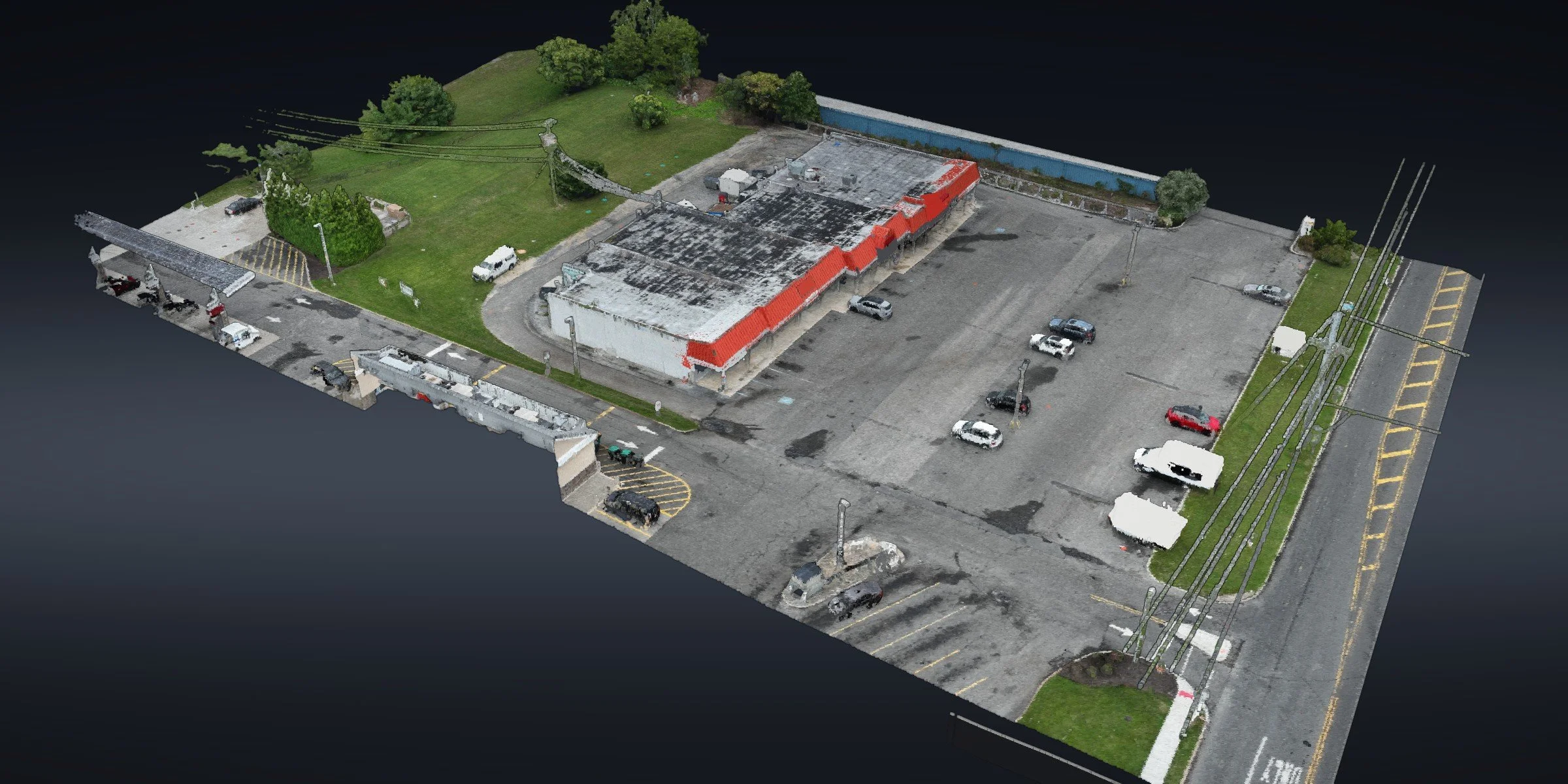

The whole 1.7 acre lot in 3D

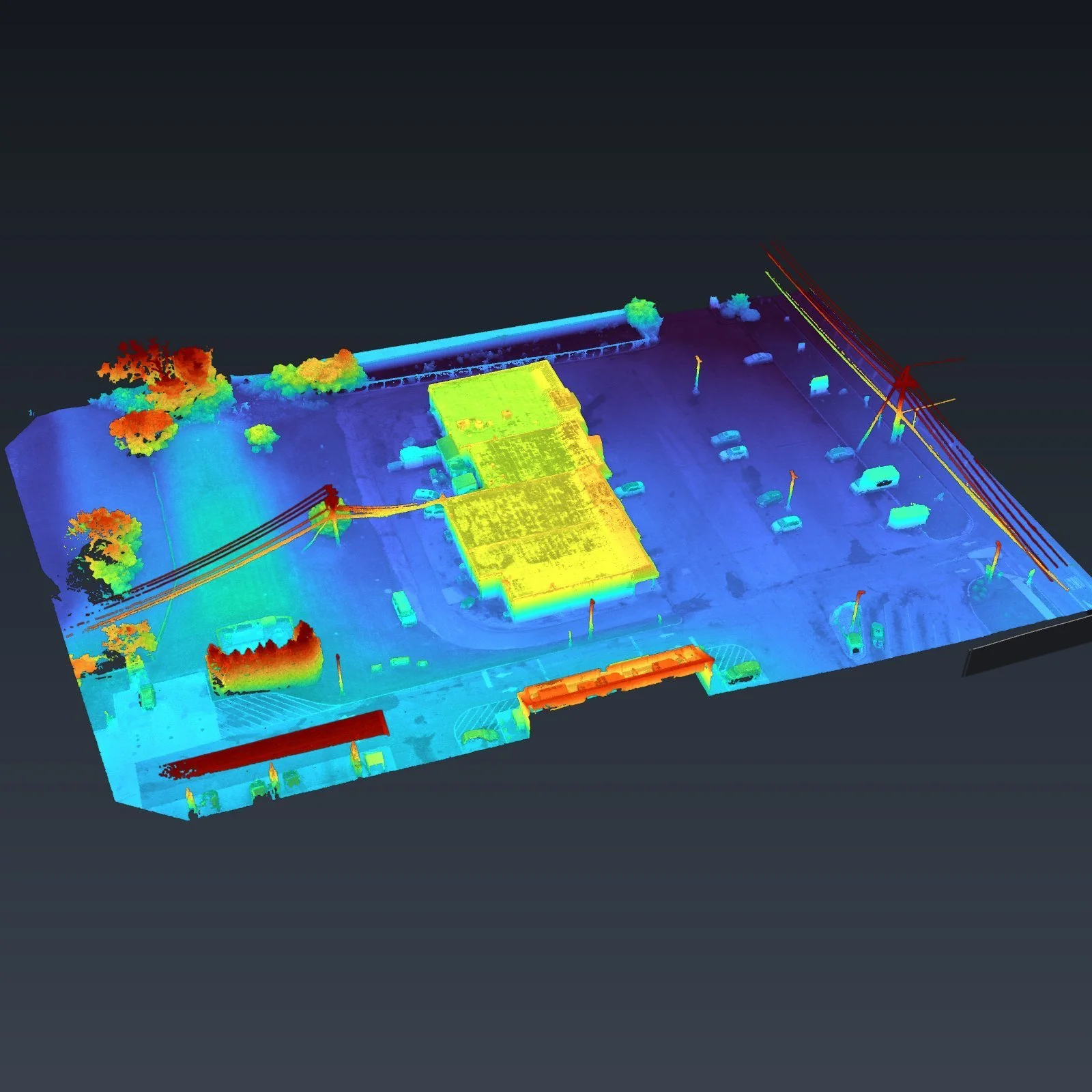

Colored by height: the building, light poles and wires above the pavement
